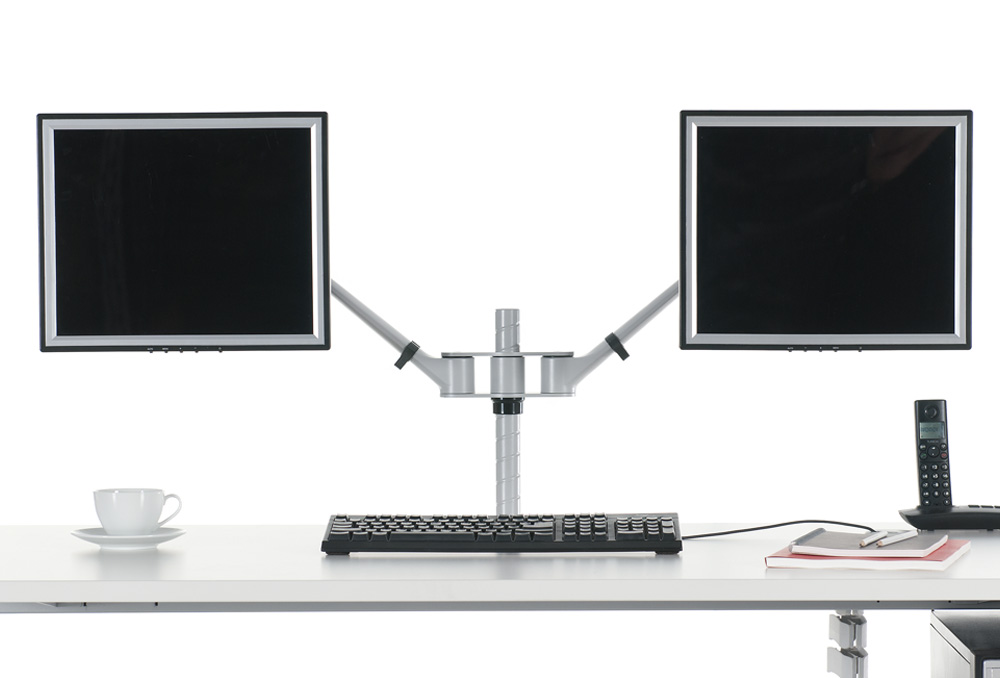

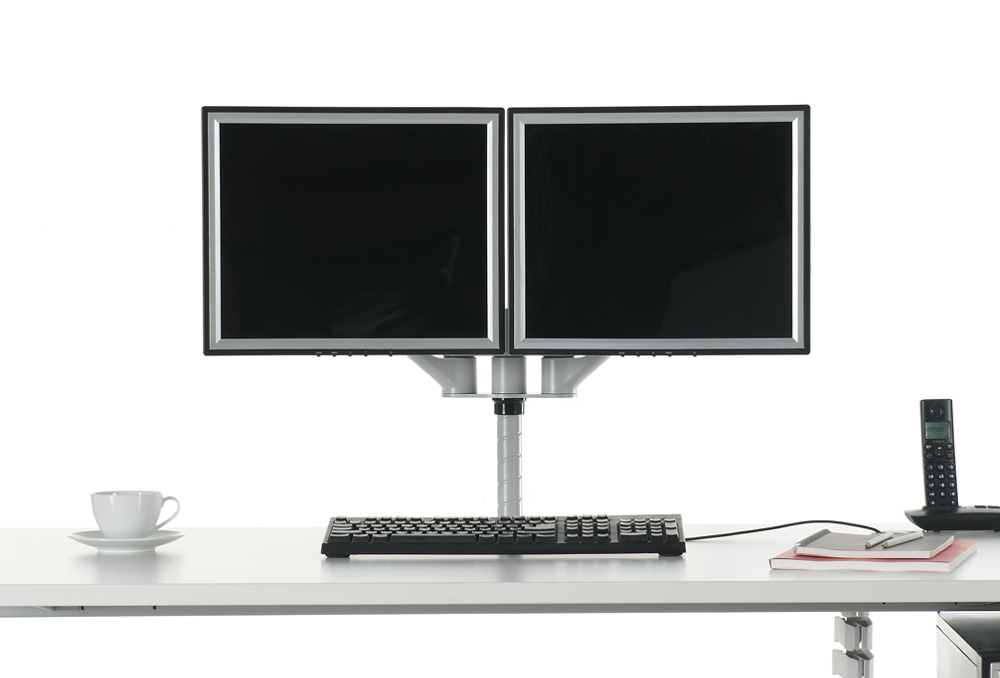

The monitor swivel arm can be mounted on an office desktop.

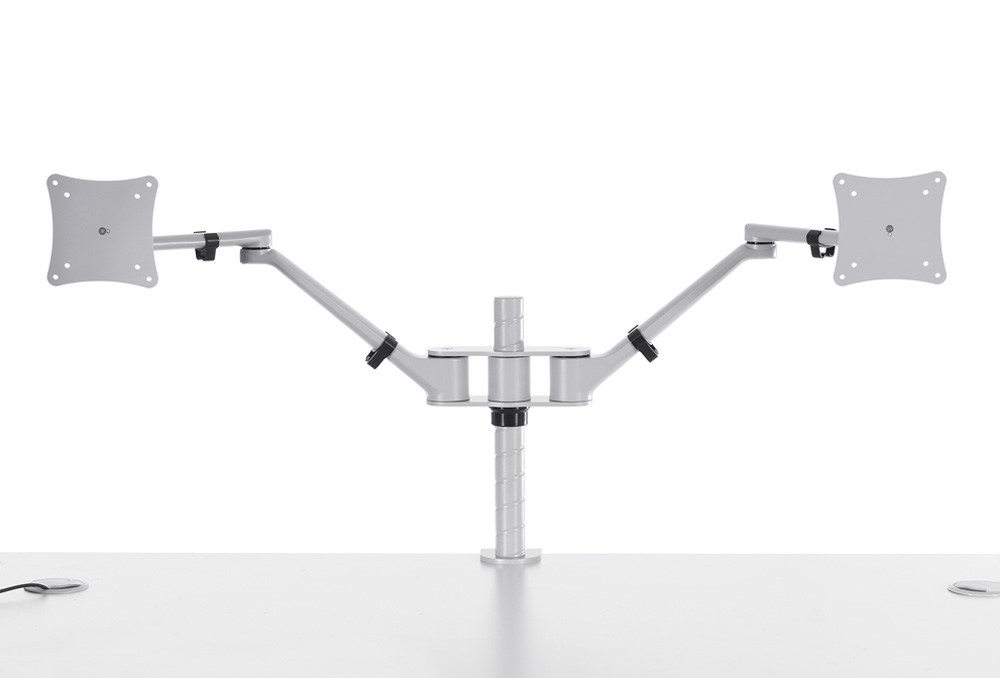

It is made of aluminium and Zamak and has three rotational joints along the vertical axis and a rotational joint along the horizontal axis as well as full monitor rotation.
Help us improve our support
We are always trying to improve how we support you. Let us know about your experience - use the slider below to tell us how valuable you found the information on this page:
Dual Monitor Arms LIBERTY
Operating Instructions:
After placing the monitor arm in accordance with the assembly instructions, the user should advance as follows:

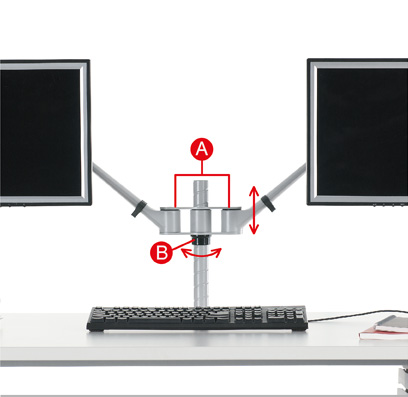

Whenever the user needs to adjust the height of the monitor arm, he/she needs to hold part A with one hand in order to support its weight and at the same time to rotate the plastic bold B with the other hand. When he/she finds the desired height, he/she releases part A.
CAUTION! The function of bold B is to stabilize the final desired height of the monitor arm and not to dynamically adjust the height by rotation.
Please, click for read & download :
Brochure (pdf format)
Short technical specification (pdf format)
Technical specification (pdf format)
Assembly drawing (link)
Users manual (link)
CAD Data (dwg format - The scale is defined by printing)
