The 5-star base of the chair is made of thermoplastic polyamide with a diameter of 640mm.
The seating mechanism is a “Synchro” mechanism and is made of steel and die-cast aluminum. It allows a 28° synchronized movement of the seat.
The seating plate is made of injection molded Polyamide . On the seating plate lies a cushion made of expanded polyurethane foam with 50 mm thickness, which is upholstered with the chosen fabric.
Help us improve our support
We are always trying to improve how we support you. Let us know about your experience - use the slider below to tell us how valuable you found the information on this page:
One

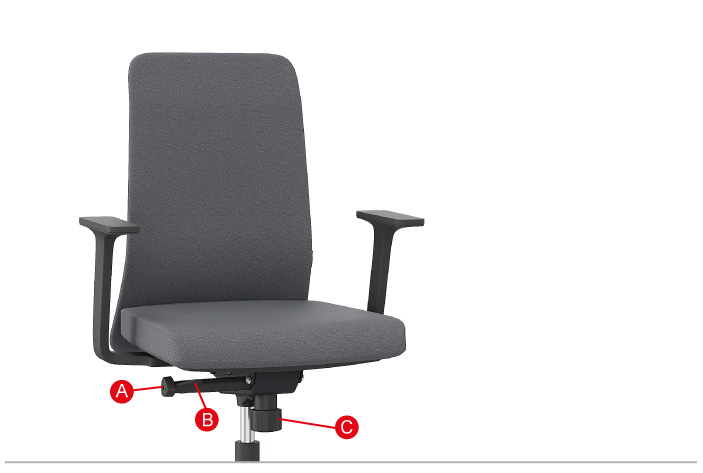

Seat height adjustment
For adjusting the seat height, you will find a lever A underneath the right side of the seat. While seated, pull the lever upwards to lower the seat height.When you take your weight off the seat and you pull the lever upwards, the seat rises.
Tilt adjustment of the backrest
There are up to four different positions of the seat and back reclination. To select the desired reclination, look for lever B below and to the left of the seat cushion.Push it forward to unlock the backrest. Let go of your weight back, find the position that suits you and push lever B back to lock in the desired position. With the seat and back unlocked, you can change the tilt according to the pressure of your body.
Backrest tension adjustment
The hardness of the tilt of the seat and back can be adjusted depending on the user’s weight through the crank C which is located below the seat.
Please, click for read & download :
Brochure (pdf format)
Short technical specification (pdf format)
Technical specification (pdf format)
Assembly drawing (link)
Users manual (link)
CAD Data (dwg format - The scale is defined by printing)
