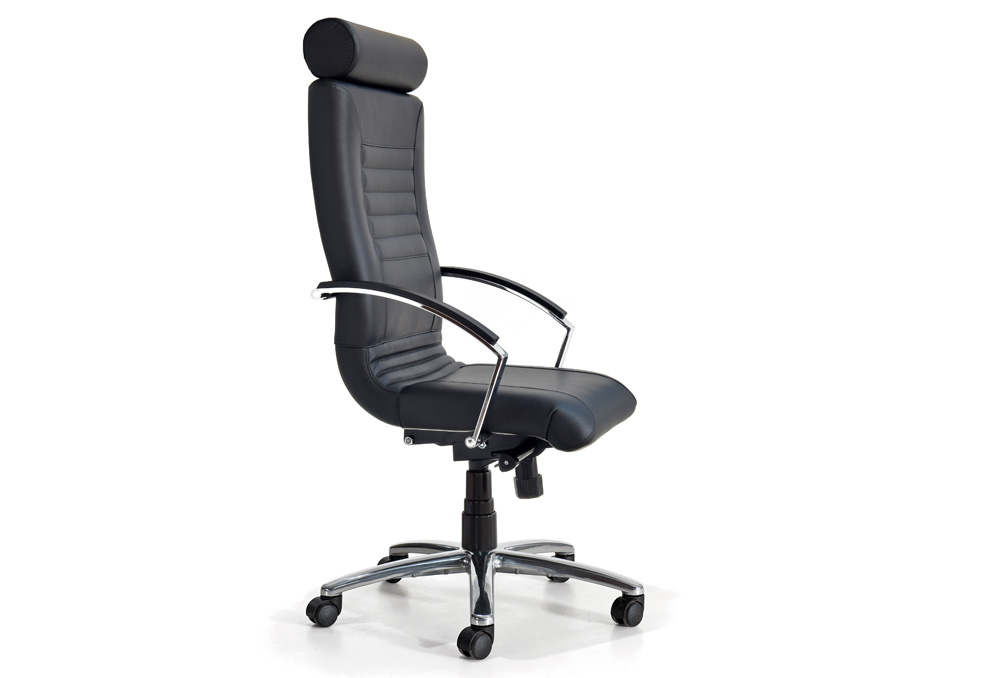

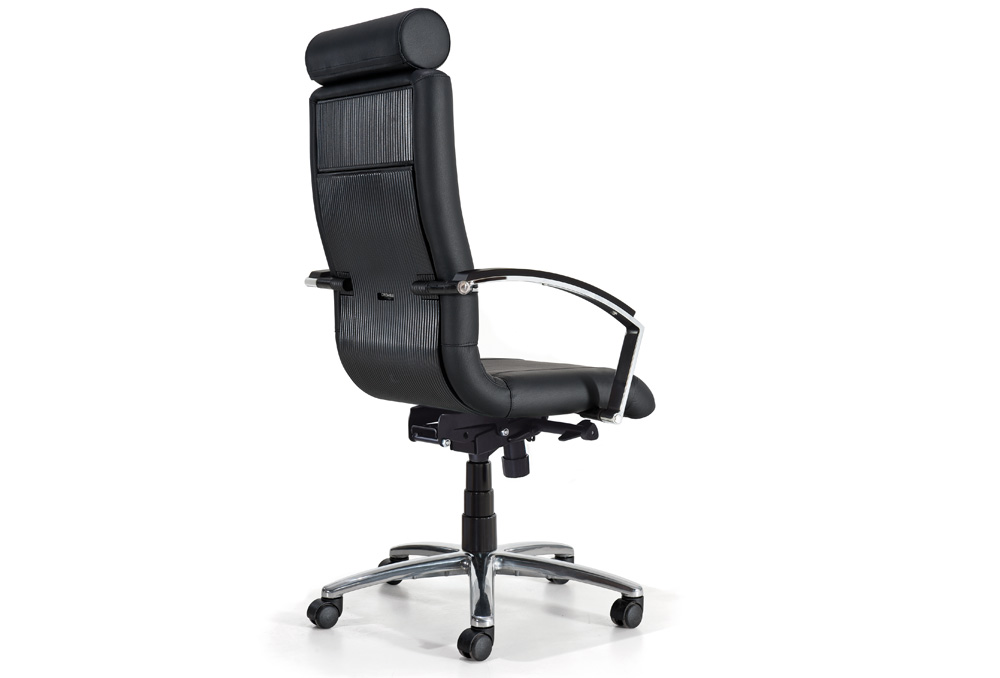

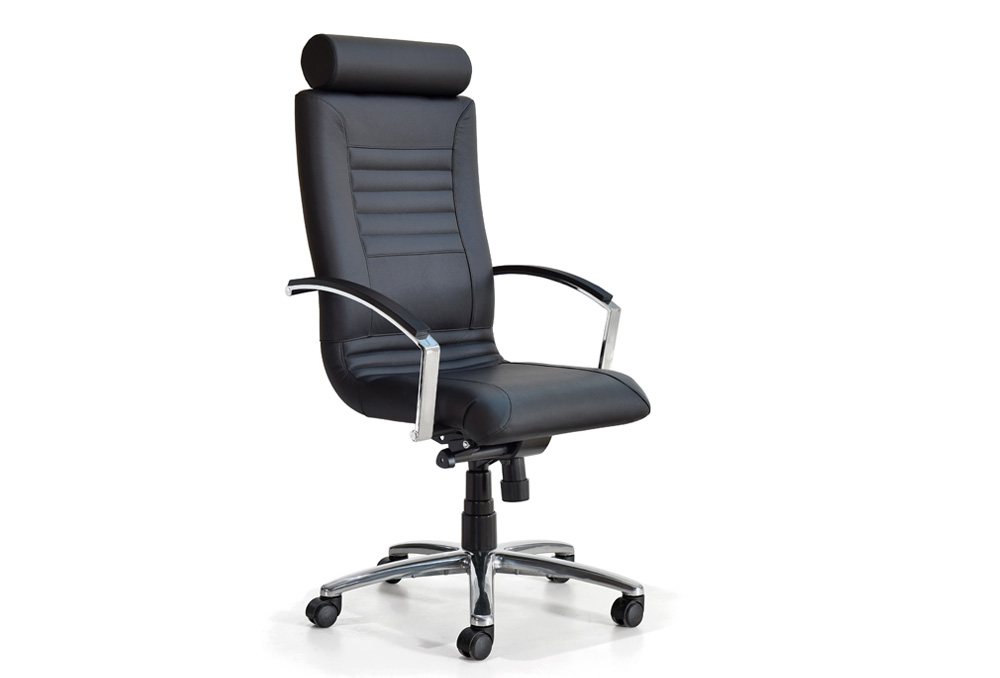

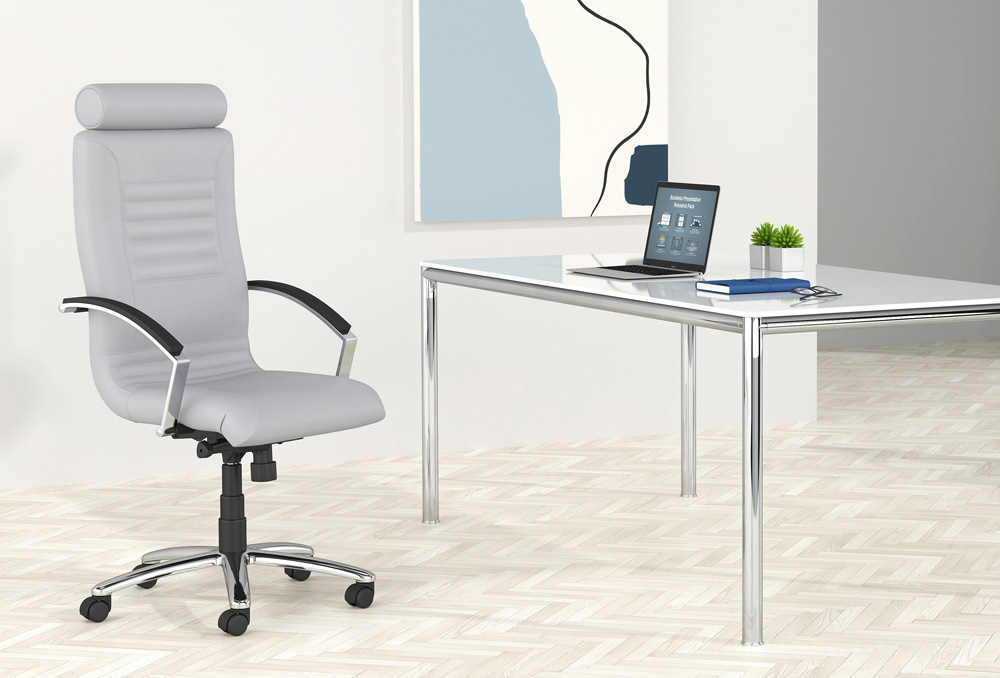

Managerial swivel chair with 5-star base made of die-cast aluminium with polished or powder coated finish.

The seat and backrest are made in one-piece and of expanded polyurethane foam, upholstered with material of choice.

The chair is height adjustable through a gas lift. The chair mechanism of the one-piece seat and backrest is of RELAX type, made of die-cast aluminium and steel.

The mechanism is equipped with an anti-panic function for smooth and controlled backrest return to normal position and with adjustment for the return and balance force, depending on the user’s weight.

On the upper part of the backrest there is the possibility to attach a cylindrical headrest from more comfort. It is made of expanded polyurethane foam and upholstered with material of choice.

You can chose upholstery from seven categories with a large range of colours.

Seat height adjustment
For adjustment of the seat height, find the flaps on the handle A underneath the right side of the seat. While seated push the flap onwards to lower the seat height. To raise the seat, get up and repeat the above procedure.

Tilt adjustment of the backrest
There are four different positions for a seat - back reclination. To choose the desired position, find the crank B beneath the seat, at the right side. Turn clockwise once to unlock the backrest. Move your weight backwards; find a convenient position and then turn the crank B clockwise, once again, to lock in the desired position. Having unlocked the seat and the back, you can change the position using the pressure of your body.

Backrest tension adjustment
The hardness of the tilt of the seat and back can be adjusted depending on the user’s weight through the crank C which is located below the seat.

Please, click for read & download :

Brochure (pdf format)

Short technical specification (pdf format)

Technical specification (pdf format)

Assembly drawing (link)

Users manual (link)

CAD Data (dwg format - The scale is defined by printing)
